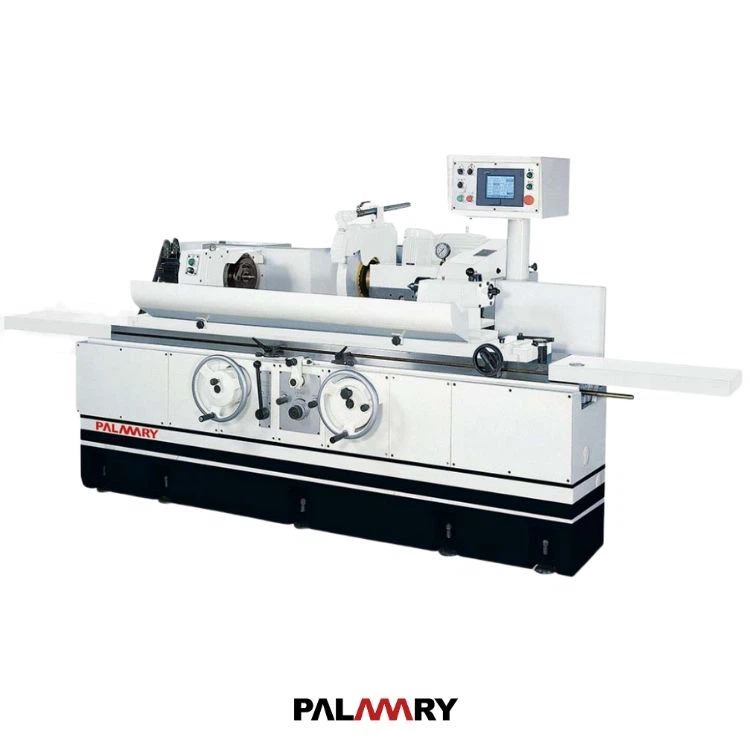

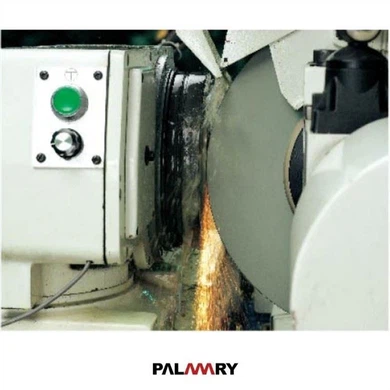

Bushing Grinder
●Special hydrostatic bearing
●Precision wheel head
●Various grinding application
Product Details
Overview
The bushing grinder can realize straight cut grinding, shoulder grinding, transverse grinding, end grinding, taper grinding and internal grinding (optional). The multifunctional features enable it to be used for a variety of processing purposes, which can help users save the cost of purchasing multiple machines. The machine is driven by a servo motor, and its spindle speed is within the range of 10~300PRM, which greatly improves its machining flexibility. Thanks to the design of precision wheel heads and special hydrostatic bearings, it can ensure high accuracy and achieve very little wear. This machine is also very easy to maintain, so it can be used for a long time.
Features
● The spindle speeds of the bushing grinder are within the range of 10~300PRM, which can facilitate the processing of parts with different accuracy requirements.
● Special hydrostatic bearing+precision wheel head can effectively improve machining accuracy and ensure small wear.
● The machine has a complete protective cover to prevent dust and water from entering the grinding wheel and ensure the safety of workers.
● The grinder can be used for various grinding applications because of its complete functions.
Product Specification
GU42x150NC |
|
Capacity | |
Distance between centers | 1500 mm |
Swivel over table | Ø420 mm |
Max. load of centers | 150 kg |
Max. external grinding diameter | Ø400 mm |
Wheel head | |
Swivel angle | ±30° |
Manual distance | 160 mm |
Auto rapid advance | 40 mm |
Sliding seat supplementary displacement | 95 (total 295) mm |
Min. setting unit | 0.001 mm |
One turn of handwheel (graduation) | 2 (0.005) mm |
Grinding wheel | |
O.D. x width x I.D. | Ø405 x 50 x Ø127 mm |
Speed (belt-type) | 1783 r.p.m. (50 Hz) / 1940 r.p.m. (60 Hz) |
Work spindle head | |
Swivel angle | 120° (+90°, -30°) |
Center taper | MT. 4 |
Spindle speed (variable) | 10~300 r.p.m. |
Max. load of spindle (tool holder included) | 35 kg (max. length : 150 mm) |
Tailstock | |
Center taper | MT. 4 |
Stroke | 25 mm |
Table | |
Swivel angle | -3° ~ +7° |
Traverse speed | 50 / 5400 mm/min |
Auto. reciprocate min. stroke | 8 mm |
Feed of one turn of handwheel (2-step) | 20 mm (2 mm) |
