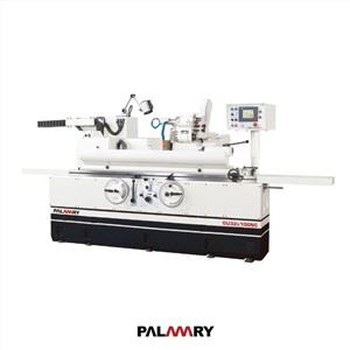

Screw Grinding Machine
●Meehanite casting ironHeat treatment and stress relieved for outstanding stability without deformation.
●Hydro-static bearing and lubrication system.Quick movement on slideway of table and wheel head.
Product Details
Description
This Screw Grinding Machine is generally used for grinding some large, medium and small parts, mainly for grinding their internal threads and end faces. Because it is a numerical control machine tool, it can give consideration to the production and processing of various parts. And the quality of the processed parts is stable and reliable. The equipment is equipped with an airtight cover, which can play a good role in maintenance. The guide rail is precision machined and has very good vibration resistance. The lubrication part is automatic lubrication, so some lubrication work can be saved. It can process materials and parts that cannot be processed by other machine tools.
Features
1. Meehanite casting ironHeat treatment and stress relieved for outstanding stability without deformation.
2. Hydro-static bearing and lubrication system.Quick movement on slideway of table and wheel head.
3. The computer software can realize precision compensation and control, so it is very intelligent and efficient.
4. Screw Grinding Machine is numerically controlled, so it can achieve higher processing accuracy and reduce many human errors.
Product Specification
| OCD-2040 |
|
Capacity | |
Swing over table | Ø200 mm |
Distance between centers | 400 mm |
Max. grinding diameter | Ø180 mm |
Max. load held between centers | 60 kg |
Wheel |
|
O.D. x width x I.D. | Ø355 x 38 x Ø127 mm |
Linear velocity | 30 M/s |
Wheelhead |
|
Rapid feedrate | 10 M/min |
Min. input increment | 0.0001 mm |
Internal grinding (opt.) | Manual elevation |
Table |
|
Rapid feedrate | 6 M/min |
Min. input increment | 0.0001 mm |
Swiveling angle | -3° ~ 10° |
Workhead |
|
Swiveling angle | -30° ~ +90° |
Center | MT. 3 |
Speed | 10~300 r.p.m. |
Max. load of spindle (tool holder included) | 15 kg (max. length : 100 mm) |
Tailstock |
|
Center | MT. 3 |
Tailstock stroke | 20 mm |
Controller | FANUC |
Why choose us?
- We offer a wide range of cylindrical grinders to suit every budget and application.
- In order to meet market demand, we strive for perfection and keep making progress, and have won unanimous praise from customers in the market.
- We are a leading manufacturer and supplier of high-quality cylindrical grinders in China.
- The company always takes innovation as the source of driving force, constantly adheres to technological innovation, increases R&D investment, and establishes strategic cooperation with overseas scientific research institutions.
- We offer a comprehensive range of cylindrical grinders to meet the diverse needs of our customers.
- Our company always adhere to the purpose of serving customers and grow together with customers under the newer and greater opportunities.
- Our cylindrical grinders are engineered to deliver superior performance and long-lasting durability.
- Our company has always adhered to the concept of high standards and strict requirements, survival by quality, development by technology, customer first, honest management, and emphasis on service, which has won praise from all walks of life and made Screw Grinding Machine best-selling multiple regions and countries. We will take every customer's question seriously.
- Our cylindrical grinders are manufactured with the highest quality materials and advanced technology.
- We take innovation, excellence, and commitment to our enterprise spirit, and try to provide technical Screw Grinding Machine and enthusiastic service to customers.
