Universal Cylindrical Grinding Machine
Product Details
Description
This Universal Cylindrical Grinding Machine can complete the processing of complex parts that are difficult or impossible to process with ordinary machine tools, so it is widely used in aerospace, shipbuilding, mold and other processing industries. It is controlled by computer and can eliminate human error, so the machining consistency of parts is good and the quality is stable and reliable. The equipment has high processing precision and high finish to process better workpieces. The equipment can process parts in batches, and can alternately process two or more parts.
Features
1. The machine structure design fully meets ergonomic theorem for user-friendly operations.
2. The surface of the parts processed by the equipment is very smooth and clean, and the quality is very good.
3. Rigid and stable construction, as well as a special wheel spindle design are combined with advanced CNC control to make cylindrical grinding easier and more accurate than ever before.
4. The Universal Cylindrical Grinding Machine is made of high-quality materials, so it has good rigidity and hardness and can be used for a long time.
Product Specification

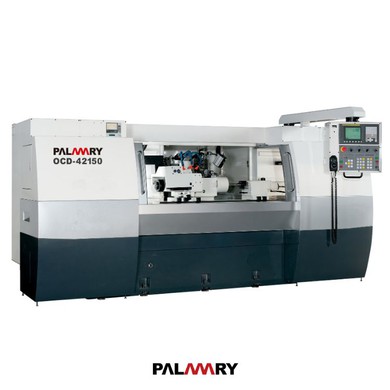

| OCD-42150 | |
Capacity | |
Swing over table | Ø420 mm |
Distance between centers | 1500 mm |
Max. grinding diameter | Ø400 mm |
Max. load held between centers | 150 kg |
Wheel | |
O.D. x width x I.D. | Ø405 x 50~75 x Ø127 mm (I.D. Ø152.4 mm opt.) |
Linear velocity | 45 M/s |
Wheelhead | |
Rapid feedrate | 10 M/min |
Min. input increment | 0.0001 mm |
Internal grinding (opt.) | Manual elevation |
Table | |
Rapid feedrate | 10 M/min |
Min. input increment | 0.0001 mm |
Swiveling angle | -3° ~ +8° |
Workhead | |
Swiveling angle | -30° ~ +90° |
Center | MT. 4 |
Speed | 5~800 r.p.m. |
Max. load of spindle (tool holder included) | 35 kg (max. length : 150 mm) |
Tailstock | |
Center | MT. 4 |
Tailstock stroke | 25 mm |
Controller | FANUC |
STANDARD ACCESSORIES
●Fanuc CNC controller x 1

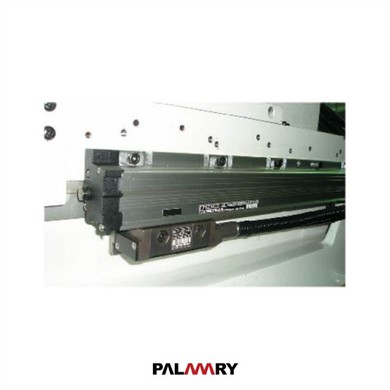

●Linear scale (for X axis) x 1
●Grinding wheel and grinding wheel flange x 1
●Diamond tool holder (tailstock mounted type) x 1
●Carbide tipped work centers x 2
●Coolant system x 1
●Hydraulic system x 1
●Work lamp x 1
●Tools and tool box x 1
