External Grinding Machine

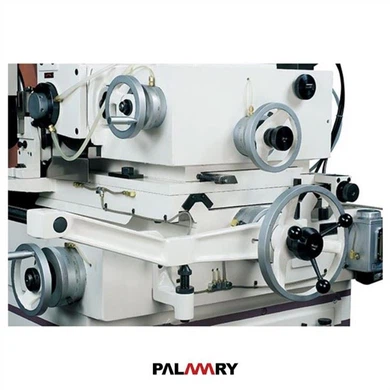

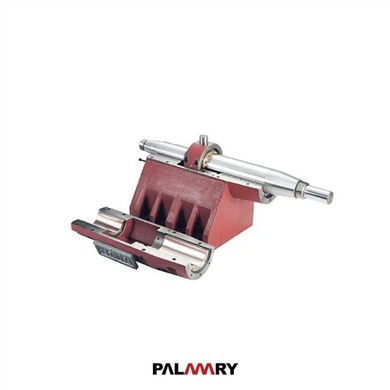

●Precision spindles.
●Feed screw.The feed screw is manufactured from alloy steel. It's also normailzed,
Product Details
Description

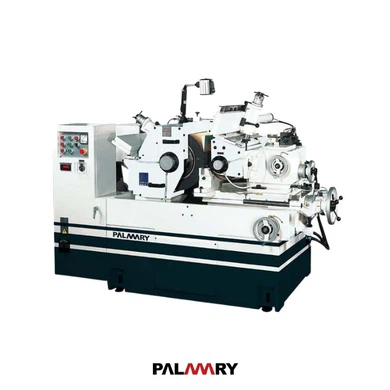

External grinding machine is mainly used for grinding small shafts, circular sleeves, needle valves, pistons, etc., and it has the advantages of high precision and efficiency. Control the hydraulic and manual modes of the part atmosphere, so that the grinding wheel holder and head rest can be rotated to expand the flexibility of grinding. The machine adopts a reasonable and compact structural design, which can not only ensure the orderly transmission of all parts, but also achieve the minimum space occupation area. It is not easy to rust and is very easy to clean due to its high-quality metal structure and fine surface treatment. This durable equipment is very suitable for tool processing shops, maintenance workshops and small and medium batch production workshops.
Features
● Machine weight: N.W 3700 KGS
● The precision spindle can ensure the best accuracy and minimum error in the processing process.
● The feed screw is made of alloy steel, which is not only durable and wear-resistant, but also very corrosion resistant.
● External grinding machine is widely used in parts processing of instrument, automobile, electromechanical, bearing, textile, ship, sewing machine and other industries.
Product Specification
| PC-20S | |
Grinding wheel | |
Standard grinding range (dia.) | Ø1~80 mm |
Capacity increases with special arrangement | Ø40~150 mm |
Grinding wheel size (O.D. x width x I.D.) | Ø510 x 205 x Ø304.8 mm |
Grinding wheel speed | 1200 r.p.m. |
Grinding wheel motor | 20 HP x 4P |
Regulating wheel | |
Regulating wheel size (O.D. x width x I.D.) | Ø305 x 205 x Ø127 mm |
Regulating wheel speed | 10~300 r.p.m. (variable) |
Regulating wheel motor | 5 kW servo motor |
Regulating wheel tilt angle | +5° ~ -3° |
Regulating wheel swivel angle | ±5° |
Handwheel graduation | |
Upper slide feed graduation | 3.5 mm/rev. ; 0.05 mm/graduation |
Upper slide micro-feed graduation | 0.1 mm/rev. ; 0.001 mm/graduation |
Lower slide feed graduation | 9 mm/rev. ; 0.05 mm/graduation |
Lower slide micro-feed graduation | 0.2 mm/rev. ; 0.001 mm/graduation |
Trimming device graduation | 2 mm/rev. ; 0.01 mm/graduation |
STANDARD ACCESSORIES
●Regulating wheel and flange x 1
●Grinding wheel and flange x 1
●Infeed work rest and carbide blade x 1
●Thrufeed work rest and carbide blade x 1
●Electric system x 1
●Hydraulic system x 1
●Coolant system x 1
●Diamond tools x 2
●Work lamp x 1
●Tools and tool box x 1
